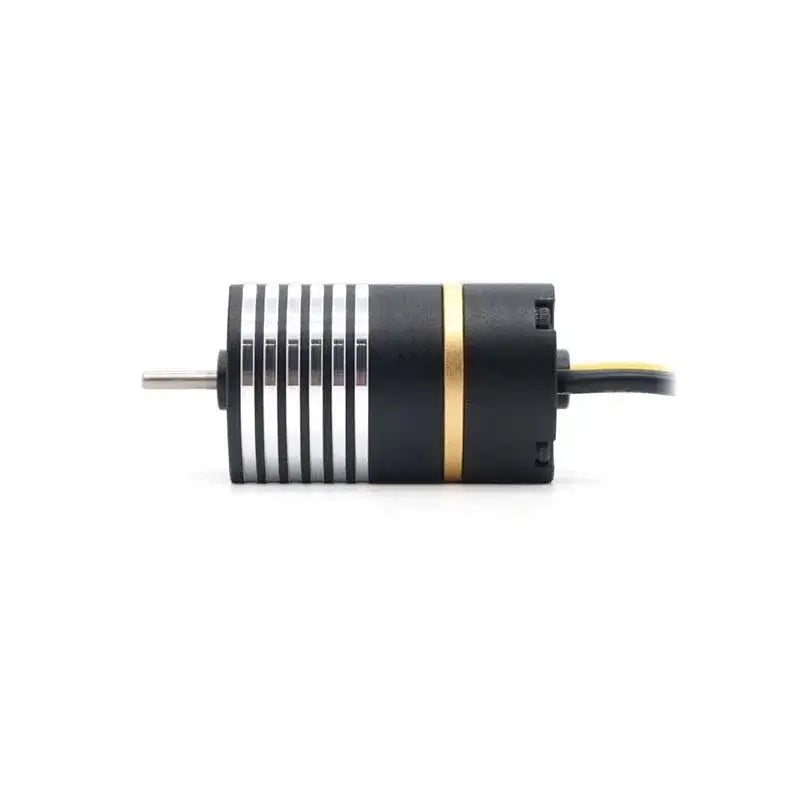

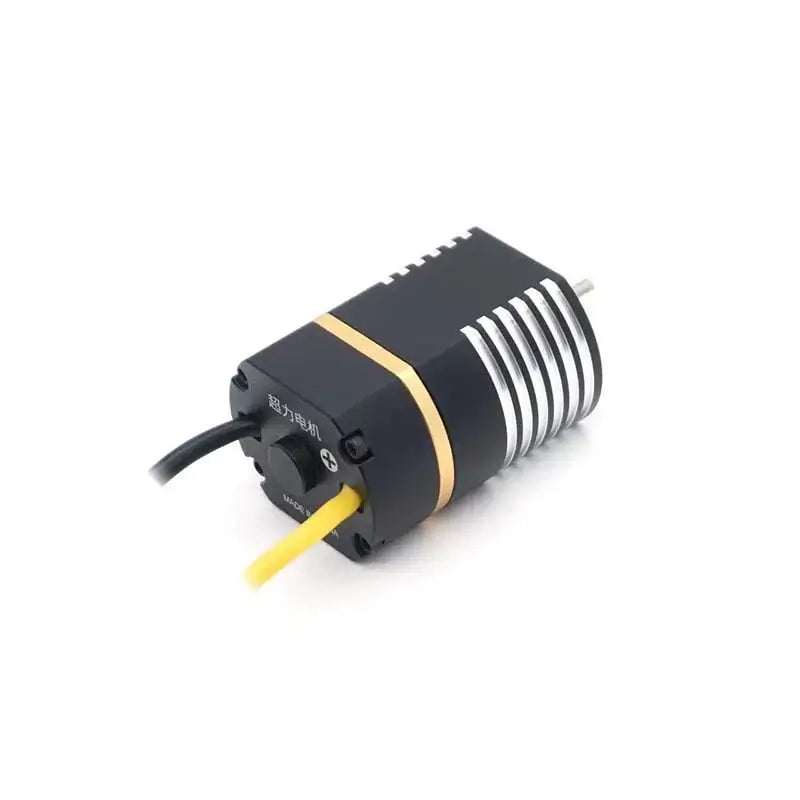

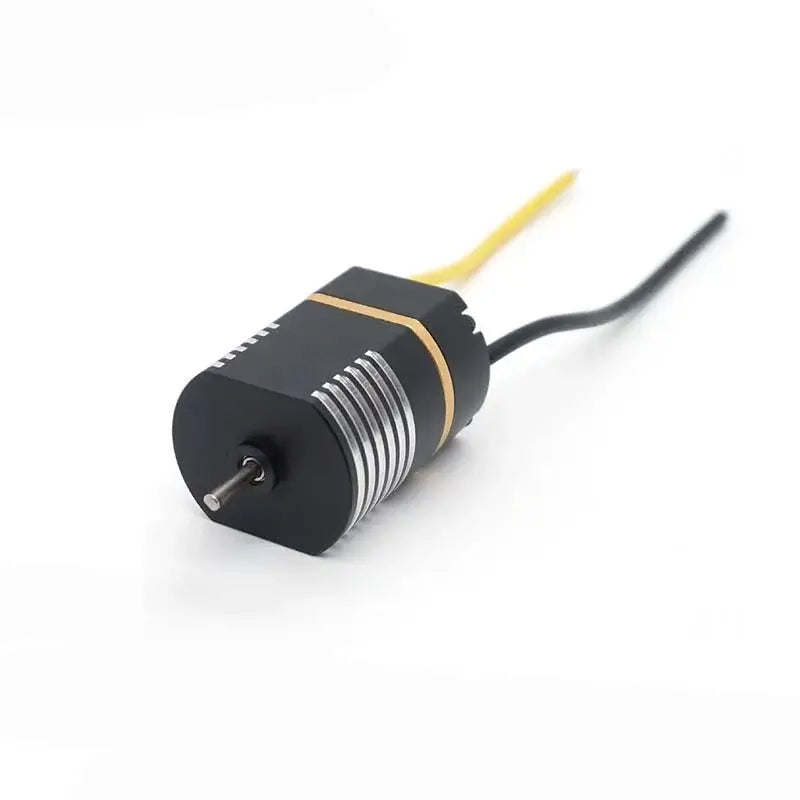

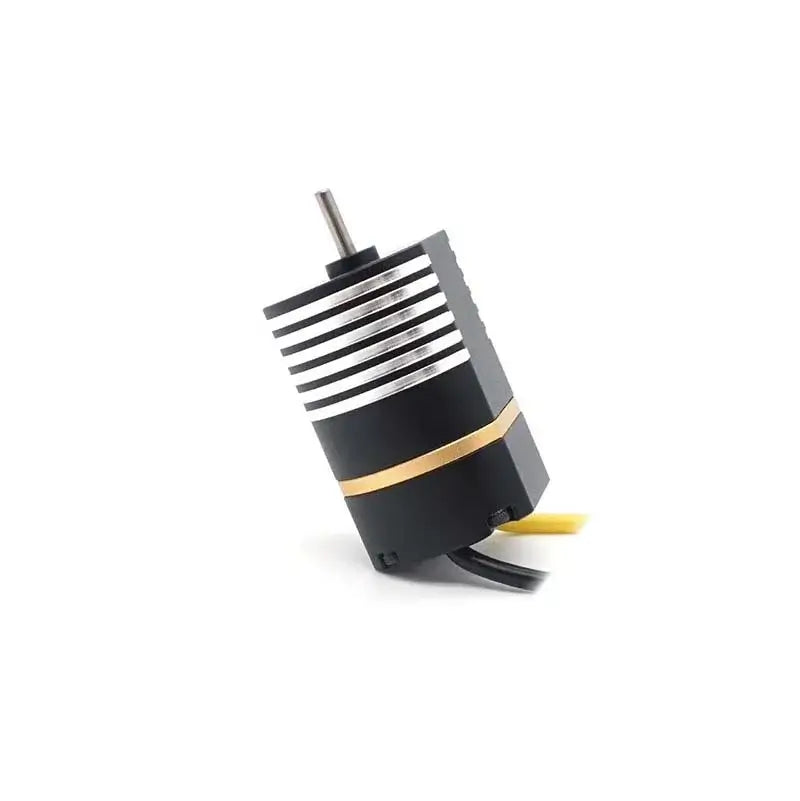

CL Brushless 280 Motor 11.1v 44000RPM
CL Brushless 280 Motor 11.1v 44000RPM
Couldn't load pickup availability
Supercharge your electric gel blaster with the CL 280 Brushless Motor, delivering 44,000 RPM at 11.1V for unmatched trigger response and firing speed. Designed for compact pistols and SMG-style blasters, this high-efficiency motor (78.55% max efficiency) provides smoother operation, reduced wear, and longer lifespan compared to standard brushed motors.
Key Features:
⚡ 44,000 RPM No-Load Speed – Lightning-fast trigger response
🔋 Wide Voltage Range (6.0V–14.0V) – Compatible with most LiPo setups
🛠️ Brushless Design – Less heat, less maintenance, more durability
🔌 Easy Installation – Black wire (negative), yellow wire (positive)
⚙️ High Torque Output – 141.78 gf.cm for consistent performance
Technical Specifications:
-
Model: CL-WS2432N(BL280)
-

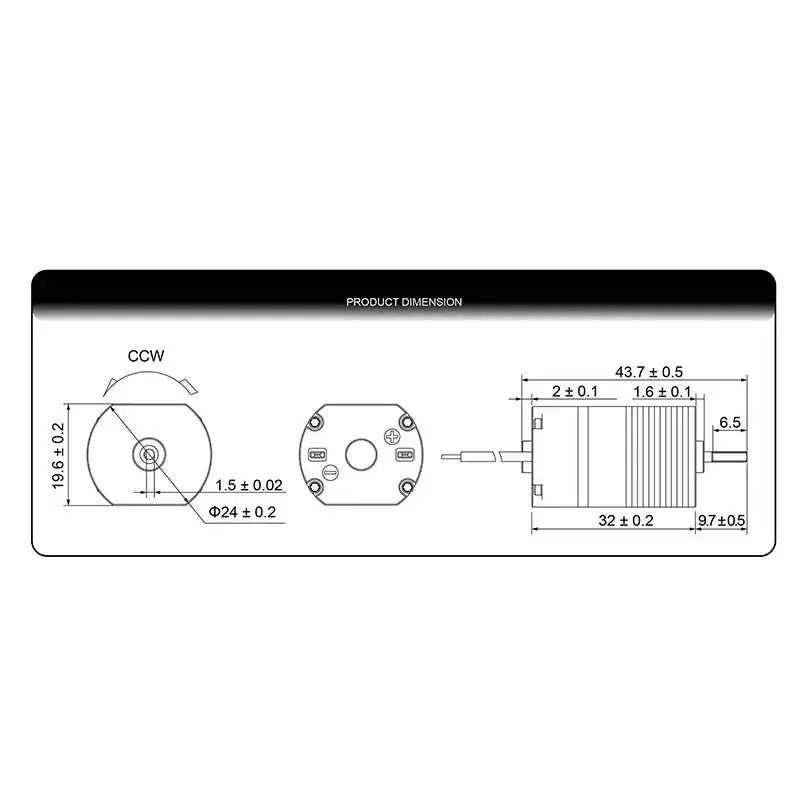

Body Diameter: 24mm
-
Body Length: 32mm
-
Power Range: 10.0–300.0W
-
Weight: 50g
-
Color: Black
-
Included: 1x CL 280 Brushless Motor
Why Upgrade to Brushless?
✔ Faster acceleration for rapid-fire sequences
✔ Cooler operation prevents overheating during extended use
✔ More efficient power transfer for better battery life
Ideal for:
-
Upgrading compact gel blasters
-
Competitive players needing faster cycle rates
-
Modders seeking reliable, high-performance components
BASIC INFORMATION |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
Terminal resistance |
||||||||||
Model |
Calculate KV |
Operation range |
Nominal |
Current |
Speed |
Current |
Speed |
Efficiency |
Torque |
Power |
Current |
Torque |
|||
rpm /V | VDC | VDC | mA | r/min | mA | r/min | ηmax | mN.m | gf.cm | W | A | mN.m | gf.cm | Ω | |
CL-WS2432N(BL280) | 3.96 | 3.7~12.0 | 11.1 | 750 | 44000 | 6595 | 39507.42478 | 78.55% | 13.90 | 141.78 | 57502.0 | 58.0 | 136.13 | 1388.56 | 0.191 |
